140-154, 148-163, 158-174 MHz
Isolators "extreme"
IF-1(2)VL-50(125)X/2, IF-1(2)VM-50(125)X/2, IF-1(2)VH-50(125)X/2

IF-1V-50X/2

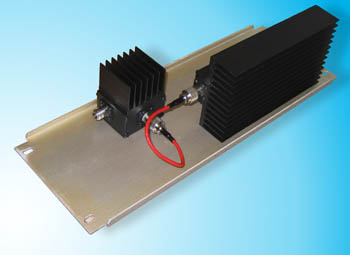

 IF-1V-125X/2
IF-2V-50X/2

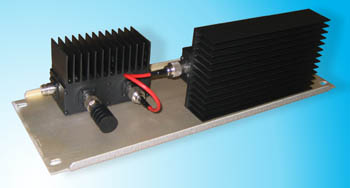

 IF-2V-125X/2
Electrical specifications
Model IF-1VL(VM,VH)-50X/2 IF-2VL(VM,VH)-50X/2 IF-1VL(VM,VH)-125X/2 IF-2VL(VM,VH)-125X/2
Operating frequency band, MHz VL 140-154
VM 148-163
VH 158-174		 VL 140-154
VM 148-163
VH 158-174		 VL 140-154
VM 148-163
VH 158-174		 VL 140-154
VM 148-163
VH 158-174
Insertion loss
not more, dB		 0.4 0.8 0.4 0.8
Isolation TX-TX
not less, dB		 27 55 27 55
Impedance, Ohm 50 50 50 50
VSWR, not more than 1.2 1.2 1.2 1,2
Input power
not more than, W		 50 50 125 125
Temperature range, °C from -30 to +50 from -30 to +50 from -30 to +50 from -30 to +50
Mechanical specifications
Model IF-1VL(VM,VH)-50X/2 IF-2VL(VM,VH)-50X/2 IF-1VL(VM,VH)-125X/2 IF-2VL(VM,VH)-125X/2
Weight, kg 0.48 1.07 1.95 2.35
Connectors N-female N-female N-female N-female
Length/Width/Depth , mm 125x70x102 150x90x168 480x178x122 480x178x122

Typical isolator characteristics

IF-1VM-50X/2

IF-2VL-50X/2
