400-470, 420-490 MHz
Isolators "extreme"
IF-1(2)UL-50(125)X/2, IF-1(2)UH-50(125)X/2

IF-1U-50X/2

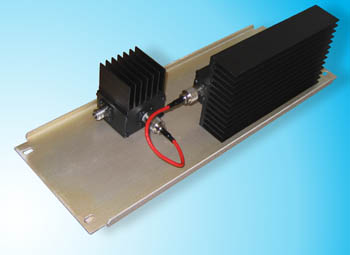

 IF-1U-125X/2
IF-2U-50X/2

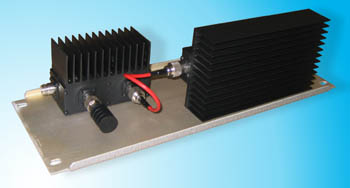

 IF-2U-125X/2
Electrical specifications
Model IF-1UL(UH)-50X/2 IF-2UL(UH)-50X/2 IF-1UL(UH)-125X/2 IF-2UL(UH)-125X/2
Operating frequency band, MHz VL 140-154
VM 148-163
VH 158-174		 VL 140-154
VM 148-163
VH 158-174		 VL 140-154
VM 148-163
VH 158-174		 VL 140-154
VM 148-163
VH 158-174
Insertion loss
not more, dB		 0.4 0.8 0.4 0.8
Isolation TX-TX
not less, dB		 27 55 27 55
Impedance, Ohm 50 50 50 50
VSWR, not more than 1.2 1.2 1.2 1,2
Input power
not more than, W		 50 50 125 125
Temperature range, °C from -30 to +50 from -30 to +50 from -30 to +50 from -30 to +50
Mechanical specifications
Model IF-1UL(UH)-50X/2 IF-2UL(UH)-50X/2 IF-1UL(UH)-125X/2 IF-2UL(UH)-125X/2
Weight, kg 0,48 1,07 1,95 2,35
Connectors N-female N-female N-female N-female
Length/Width/Depth , mm 125x70x102 150x90x168 480x178x122 480x178x122


Typical isolator characteristics

IF-1U-125X/2

IF-2U-50X/2
