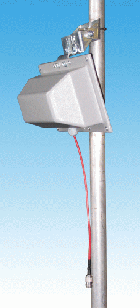

SU-12W with MN-3
|

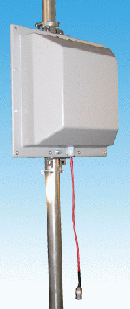

SU-15W
|
SU-12W(M)
1_site3.jpg)
|
SU-15W(M)
1_site1.jpg)
|
SU-12W(M) Underside
|
| | Electrical specifications
| Model |
SU-12W |
SU-15W
|
| Operating frequency band, MHz |
2400-2485 |
2400-2485
|
| Gain,dBi |
12 |
15
|
| VSWR, not more than |
1.5 |
1.5
|
| Front-to-back ratio, dB |
23 |
23
|
| Polarization |
vertical
|
| Max. power input, W |
10 |
10
|
| Sector in H-plane (-3 dB) |
29° |
25°
|
| Sector in E-plane (-3 dB) |
49° |
25°
|
| Impedance, Ohm |
50 |
50
|
|
|
Mechanical specifications
| Model |
SU-12W |
SU-15W
|
| Dimensions (LxWxH), mm |
284x95x164 |
294x103x294
|
| Weight, kg |
0.7 |
1.05
|
| Rated wind velocity, m/s |
55 |
55
|
| Radiator |
copper |
copper
|
| Radome |
ABS
|
| Mounting |
on a mast (30-220 mm) with "Norma" or CP-55D, CP-115, CP-220
|
| Connector |
N-female on a cable
|
| |
The directional subscribers` antennas SU-12W and SU-15W with the gain of 12 and 15 dBi, correspondingly, have a performance which is suitable for all kinds of the weather conditions due to the frost-resistant radome made of ABC-plastic. Because of its construction (arrays of active "patch" and passive elements) the antennas have an increased gain if compared with the classic flat antennas of the same sizes. The cable output is implemented on the high-quality cable of Huber-Suhner production and on a connector of Rosenberger production what ensures a stability of the characteristics.
SU-12W E-plane pattern
|
SU-12W H-plane pattern
|
SU-15W E-plane pattern
|
SU-15W H-plane pattern
|
| |
|
 |
