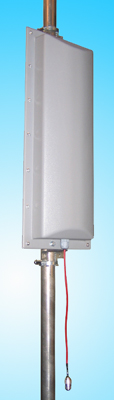

RAS-13W-60
 |

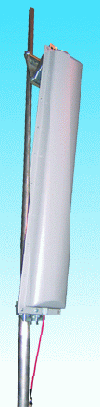

RAS-16W-60
 |
| | Electrical specifications
| Model |
RAS-13W-60 |
RAS-16W-60
|
| Operating frequency band, MHz |
2400-2485 |
2400-2485
|
| Gain,dBi |
13 |
16
|
| VSWR, not more than |
1.5 |
1.5
|
| Front-to-back ratio, dB |
25 |
25
|
| Polarization |
vertical
|
| Electrical downtilt |
0° |
7°
|
| Max. power input, W |
20 |
20
|
| Sector in H-plane (-3 dB) |
60° |
60°
|
| Sector in E-plane (-3 dB) |
13° |
9°
|
| Impedance, Ohm |
50 |
50
|
|
|
Mechanical specifications
| Model |
RAS-13W-60 |
RAS-16W-60
|
| Dimensions (LxWxH), mm |
204x63x518 |
204x63x1015
|
| Weight, kg |
1.2 |
2
|
| Rated wind velocity, m/s |
55 |
43
|
| Radiator |
copper |
copper
|
| Radome |
grey, ABS |
grey, ABS
|
| Mounting |
on a mast 30-220 mm with "Norma" or CP-55D, CP-115, CP-220
|
| Connector |
N-female on a cable
|
| |
As the base sector antennas for the WLAN networks we suggest to use these antennas (RAS-13W-60, RAS-16W-60) which have a standard servicing area within the sector of 600 and a high gain - up to 16 dBi.
The antennas have a small electrical tilt of the radiation pattern beam in a vertical plane. To achieve a narrower main lobe one can use our inclination mechanism MN-1.
The cable output is very convenient for the encapsulating of the connector, especially in the case when the antenna is mounted on the wall. The cable output is implemented on the high-quality cable of Huber-Suhner production and on a connector of Rosenberger production what ensures a stability of the characteristics.
RAS-13W-60 E-plane pattern
|
RAS-16W-60 E-plane pattern (2,4 GHz)
|
"RAS-60" antennas H-plane pattern
| |
|
 |
