 | Electrical specifications
| Model |
RAS-14P-120
|
| Operating Frequency band, MHz |
4400-4600
|
| VSWR, not more than |
1.5
|
| Gain, dBi |
14
|
| Sector in vertical plane , -3dB, +/- 10 |
80
|
| Sector in horizontal plane , -3dB, +/-50 |
1100 +/- 50
|
| Impedance, Ohm |
50
|
| Max. Power input, W |
10
|
| Electrical downtilt |
30
|
Mechanical specifications
| Model |
RAS-14P-120
|
| Weight, kg |
1,4
|
| Radiating unit construction material |
copper
|
| Radome material |
ABS
|
| Radome color |
gray
|
| Standard mounting |
to a 45-60 mm dia. tube
|
| Rated Wind Velocity, m/s |
43
|
| Temperature Range, °C |
from -50 to +50
|
| Connector |
N-female
|
| Size, mm |
138x103x580
|
| |

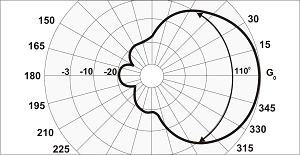

RAS-14P-120 Н-plane pattern
|

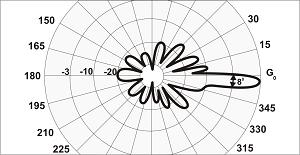

RAS-14P-120 E-plane pattern
|
| |
|
 |
