 | Electrical specifications
| Model |
RAS-12-868-60
|
| Operating Frequency band, MHz |
800-910
|
| VSWR, not more than |
1.5
|
| Gain, dBi |
12
|
| Sector in vertical plane , -3dB, +/- 10 |
180
|
| Sector in horizontal plane , -3dB, +/-50 |
600
|
| Impedance, Ohm |
50
|
| Max. Power input, W |
100
|
| Electrical downtilt |
30
|
Mechanical specifications
| Model |
RAS-12-868-60
|
| Weight, kg |
5.1
|
| Radiating unit construction material |
copper
|
| Radome material |
Fiberglass
|
| Radome color |
white
|
| Standard mounting |
to a 45-60 mm dia. tube
|
| Rated Wind Velocity, m/s |
45
|
| Temperature Range, °C |
from -50 to +50
|
| Connector |
N-female
|
| Size, mm |
1150х150х290
|
| |

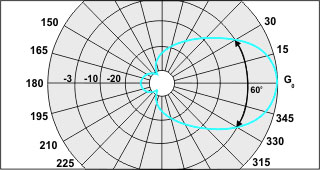

RAS-12-868-60 Н-plane pattern
|

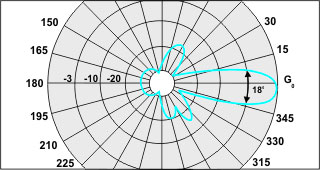

RAS-12-868-60 E-plane pattern
|
| |
|
 |
