860-970 MHz

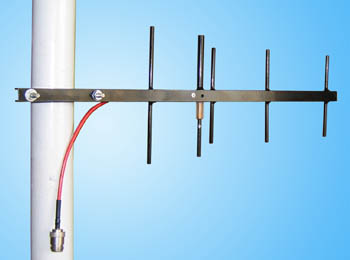

Directional antenna Y5 GL
860-970 MHz Directional antenna Y5 GL
Electrical specifications
Model Y5 GL
Operating frequency band, MHz 870-960
Gain,dBi 9
VSWR, not more than 1.5
Polarization vertical
Max. power input, W 70
Sector in H-plane (-3 dB) 65°
Sector in E-plane (-3 dB) 60°
Impedance, Ohm 50
Mechanical specifications
Model Y5 GL
Dimensions (LxWxH), mm 470x170x15
Weight, kg 0.24
Rated wind velocity, m/s 45
Construction material Aluminium alloy
Mounting on a mast (max.diam.55 mm)
Connector N - female

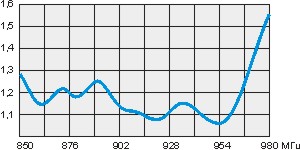

Y5 GL, VSWR diargamm

Y5 GL Н-plane pattern

Y5 GL E-plane pattern
