GSM 870-960 MHz

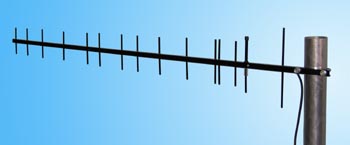

Subscribers' antenna Y15-GL

GSM 870-960 MHz Subscribers
Electrical specifications
Model Y15-GL
Operating frequency band, MHz 870-960
Gain,dBi 12
VSWR, not more than 1.5
Polarization vertical
Max. power input, W 70
Sector in H-plane (-3 dB) 42°
Sector in E-plane (-3 dB) 38°
Impedance, Ohm 50
Mechanical specifications
Model Y15-GL
Dimensions (LxWxH), mm 1330х220х15
Weight, kg 0.4
Rated wind velocity, m/s 45
Construction material Aluminium alloy
Mounting on a mast (max.diam.55 mm)
Connector FME on a cable (N - optional)

VSWR, Y15-GL

Y15-GL Н-plane pattern

Y15-GL E-plane pattern
