 | Electrical specifications
| Model |
RAO-14GL-70
|
| Operating Frequency band, MHz |
860-970
|
| VSWR, not more than |
1,5
|
| Gain,dBi |
14
|
| Sector in vertical plane , -3dB |
150
|
| Sector in horizontal plane , -3dB |
700
|
| Impedance, Ohm |
50
|
| Max. Power input, W |
50
|
Mechanical specifications
| Model |
RAO-14GL-70 |
|
| Weight, kg |
1.1 |
|
| Radiating material |
copper |
|
| Radome material |
ABS |
|
| Radome color |
grey |
|
| Standard mounting |
to a 45-60 mm dia. tube |
|
| Optional mounting |
1. to wall or mast |
|
| |
2. 5 to 15 adjustable downtilt |
|
| |
|
| Rated Wind Velocity, m/s |
45 |
|
| Temperature Range, °C |
from -50 to +50 |
|
| Connector |
N-mama |
|
| Size, mm |
204x63x1018 |
|
| |

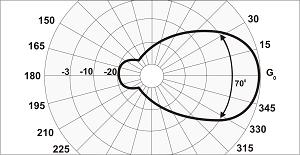

H-plane pattern RAO-14GL-70
|

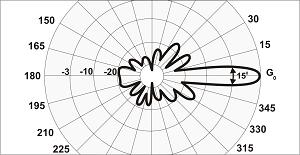

E-plane pattern RAO-14GL-70
|
| |
|
 |
