GSM 870-960 MHz

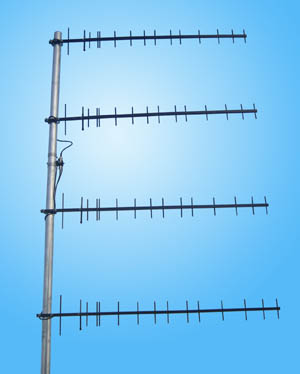

Subscribers' antenna 4xY15-GL

GSM 870-960 MHz Subscribers
Electrical specifications
Model 4xY15-GL
Operating frequency band, MHz 870-960
Gain,dBi 18
VSWR, not more than 1.5
Polarization vertical
Max. power input, W 70
Sector in H-plane (-3 dB) 38°
Sector in E-plane (-3 dB) 7°
Impedance, Ohm 50
Mechanical specifications
Model 4xY15-GL
Dimensions (LxWxH), mm 1330х1420х15
Weight, kg 2.5
Rated wind velocity, m/s 40
Construction material Aluminium alloy
Mounting on a mast (max.diam.55 mm)
Connector N - female

4xY15-GL Н-plane pattern

4xY15-GL Е-plane pattern
