RAS-12D-60
|
RAS-15D-60
|
| | Electrical specifications
| Model |
RAS-12D-60 |
RAS-15D-60
|
| Operating Frequency band, MHz |
1880-1900 |
1880-1900
|
| Gain,dBi |
12 |
15
|
| VSWR, not more than |
1.5 |
1.5
|
| Front-to-back ratio, dB |
25 |
25
|
| Polarization |
vertical |
vertical
|
| Electrical downtilt |
3° |
6°
|
| Max. Power input, W |
20 |
20
|
| Sector in H-plane (-3 dB) |
60° |
60°
|
| Sector in E-plane (-3 dB) |
18° |
10°
|
| Impedance, Ohm |
50 |
50
|
|
|
Mechanical specifications
| Model |
RAS-12D-60 |
RAS-15D-60
|
| Dimensions (LxWxH), mm |
204x63x518 |
204x63x1015
|
| Weight, kg |
1.2 |
2
|
| Rated Wind Velocity, m/s |
55 |
43
|
| Radiator |
copper |
copper
|
| Radome |
grey, ABS
|
| Mounting |
on a mast 30-220 mm with "Norma" or CP-55D, CP-115, CP-220
|
| Connector |
N-female on a cable
|
| |

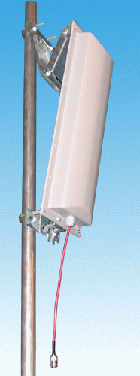

As the base antennas for DECT networks we suggest to use these narrow-sector antennas which have a standard servicing area within the sector of 600. The antennas have a small electrical tilt of the radiation pattern beam in a vertical plane. For better narrowing of the main lobe it is possible to use our tilt mechanism MN-1. The cable output is very much convenient for the encapsulating of the connector, especially if the antenna is mounted on the wall.
H-plane pattern "RAS-60"
|
RAS-12D-60 E-plane pattern
|
RAS-15D-60 E-plane pattern
| |
|
 |
