1.8-30 MHz
Receiver distribution panel SRP-8HF

1.8-30 MHz Receiver distribution panel SRP-8HF
Electrical specifications
Model SRP-8HF
Operating frequency band, MHz 1.8-30
Number of channels 8
Min. level of isolation RX-RX, dB 20
Typical level of isolation RX-RX, dB 25-30
Gain, dB +2 - +4
VSWR, not more than 2
Impedance, Ohm 50
Mechanical specifications
Model SRP-8HF
Weight, kg 1.95
Length/Width/Depth, mm 484Ñ…88Ñ…182
Temperature range, °C от -30 до +50
Connectors BNC-female (N-female optional)
Mount to 19-inch rack present

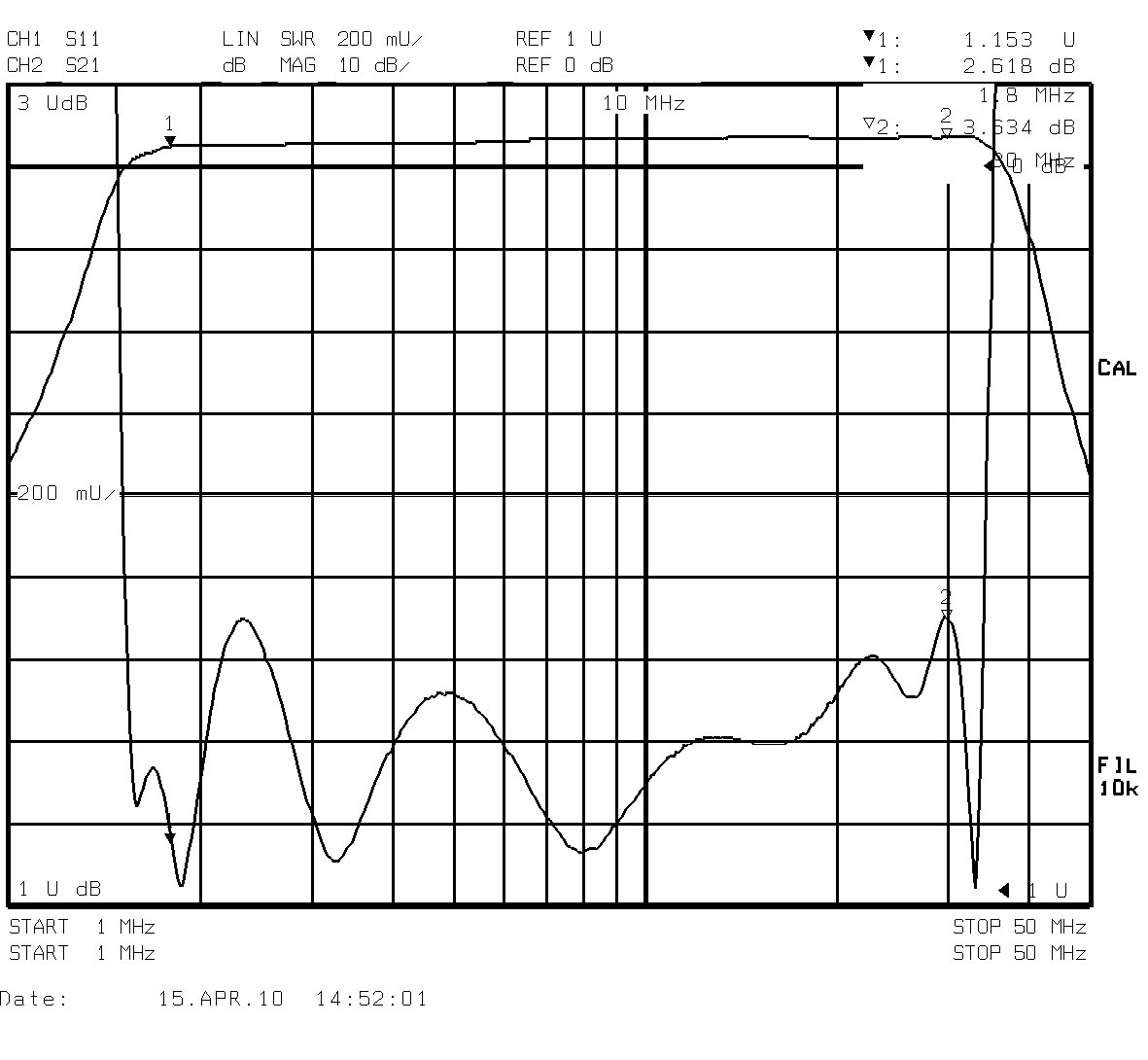

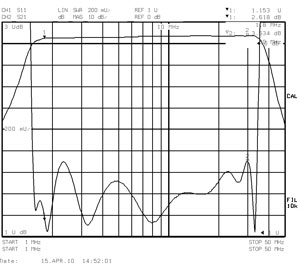

Typical gain-frequency characteristic SRP-8HF
