 | | Electrical specifications
| Model |
PS8-2FM
|
| Operating frequency band, MHz |
100-108
|
| Insertion loss (adjustable) not more, dB |
0,35
|
| Max. frequency bandwidth, kHz |
400
|
| Impedance, Ohm |
50
|
| Gain |
see figure
|
| VSWR, not more than |
1,2
|
| Input power not more than , W |
1500
|
| Temperature range, °C |
-30 to +60
|
| Cavity electrical length |
1/4λ
|
|
|
Mechanical specifications
| Model |
PS8-2FM
|
| Diameter, mm (ins.) |
206 (8")
|
| Weight, kg |
14
|
| Connector |
N-female
|
| (7/16 optional) |
|
| Mount to 19-inch rack |
present
|
| Length/Width/Depth not more, mm |
400x1010x200
|
| |

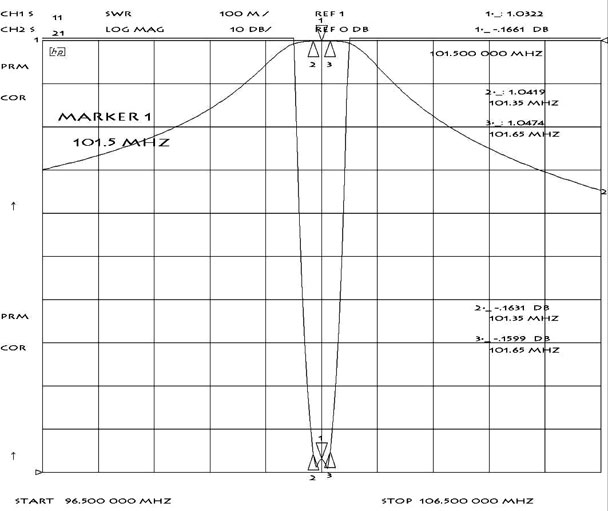

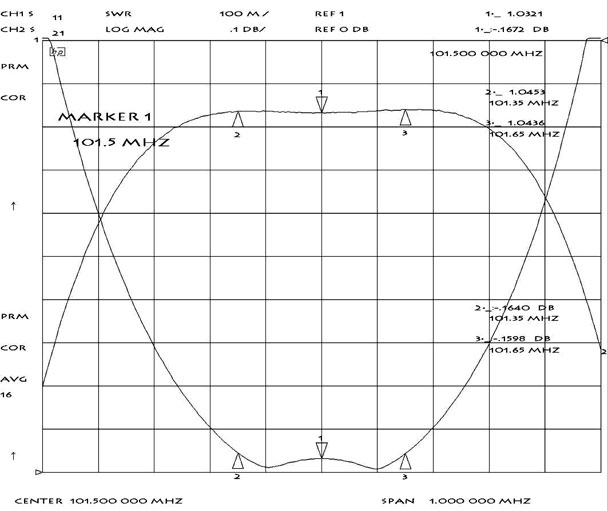

Typical gain-frequency characteristics PS8-2FM
| |
|
 |
