PS5-2V
|

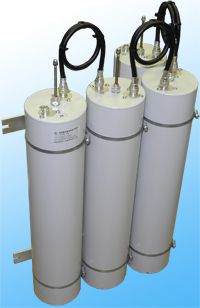

PS5-6V
|
| | Electrical specifications
| Model |
PS5-2V |
PS5-4V |
PS5-6V
|
| Operating frequency band, MHz |
140-174
|
| Insertion loss (adjustable) not more, dB |
1,5 |
2 |
3
|
| Max. frequency bandwidth, MHz |
0,3 |
0,7 |
2
|
| Impedance, Ohm |
50
|
| Gain |
see figure
|
| VSWR, not more than |
1,5
|
| Input power, W |
not more than 300
|
| Temperature range, °C |
from -30 to +60
|
| Cavity electrical length |
1/4λ
|
|
|
Mechanical specifications
| Model |
PS5-2V |
PS5-4V |
PS5-6V
|
| Diameter of cavity, mm (ins.) |
128 (5")
|
| Weight, kg |
4,4 |
8,3 |
12,2
|
| Connector |
N-female
|
| Mount to 19-inch rack |
present
|
| Length/Width/Depth not more, mm |
800x480x140 |
800x480x265
|
| |
Preselectors PS5-4(6)V are based on bandpass filters and designed to pass several frequency channels and cut out the other.
PS5-4V type preselectors are essential for every modern trunking communication station. Combine them with broadband antenna and receiver distribution panel and you will get finest repeater receiving section antenna system.
Addition of new cavities (model PS5-6V) enables to enlarge bandwidth during communication system growth and increase in number of channels.
Preselectors typical gain-frequency characteristics
PS5-2V, PS5-4V
|

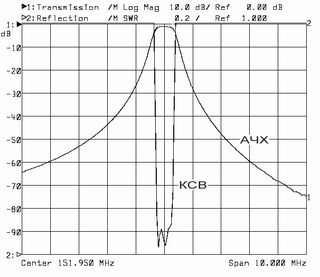

PS5-3V
|

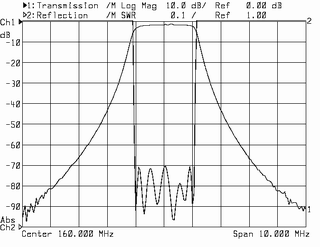

PS5-6V
| |
|
 |
