 | | Electrical specifications
| Model |
PS2-3LB(H)
|
| Operating frequency band, MHz |
41,5-50
|
| Insertion loss (adjustable) not more, dB |
1,5
|
| Max. frequency bandwidth, kHz |
100
|
| Impedance, Ohm |
50
|
| Gain |
see figure
|
| VSWR, not more than |
1,5
|
| Input power, W |
150
|
| Temperature range, °C |
from -30 to +50
|
|
|
Mechanical specifications
| Model |
PS2-3LB(H)
|
| Diameter, mm (ins.) |
50 (2")
|
| Weight, kg |
2
|
| Connector |
N-female
|
| Mount to 19-inch rack |
optional
|
| Length/Width/Depth not more, mm |
65x165x290
|
| |

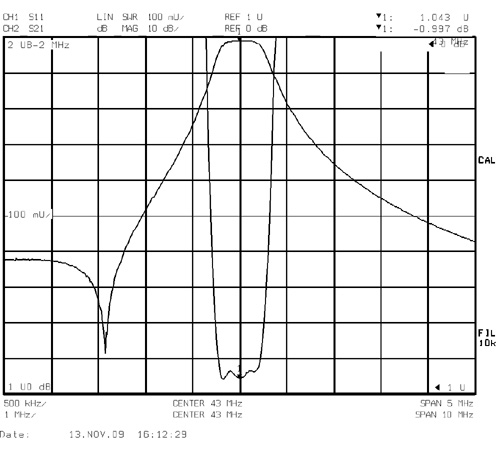

Preselectors typical gain-frequency characteristics
PS2-3LB(H)
| |
|
 |
