 | | Electrical specifications
| Model |
PRP-2V |
PRP-2A |
PRP-2U
|
| Operating frequency band, MHz |
140-174 |
300-360 |
400-490
|
| Operating bandwidth, MHz |
15 |
30 |
40
|
| Min. level of isolation, dB |
30
|
| Typical level of isolation, not less, dB |
40
|
| Gain, dB |
3,1
|
| VSWR, not more than |
1,5
|
| Impedance, Ohm |
50
|
|
|
Mechanical specifications
| Model |
PRP-2V |
PRP-2A |
PRP-2U
|
| Weight, kg |
0,62
|
| Length/Width/Depth, mm |
480x56x96
|
| Temperature range, °C |
from -30 to +50
|
| Connectors |
N-female
|
| |

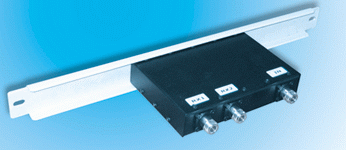

2-way receiver power splitters PRP-2 are used in multichannel mobile radio communication systems to connect repeater receivers to common antenna. Physically they represent combination of Wilkinson resonance bridges and provide not less than 30 dB decoupling between receivers input connectors, essential for prevention of intermodulation throbs between them. Additionally, amplifier AGS-19 can be implemented for loss compensation. Receiver power splitters is design for 19-inch rack mount.

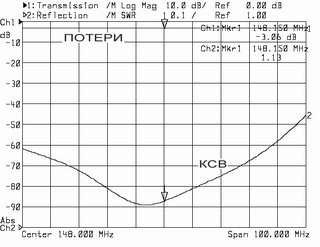

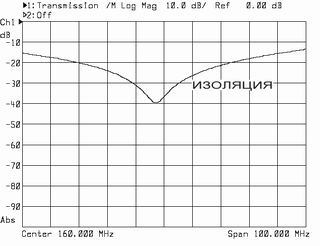

Typical gain-frequency characteristics PRP-2V
| |
|
 |
