 | Electrical specifications
| Model |
PF4-1V
|
| Operating frequency band, MHz |
140-174
|
| Insertion loss (adjustable), dB |
0,5-3
|
| Impedance, Ohm |
50
|
| Attenuation |
see fig.
|
| VSWR, not more than |
1,2
|
| Input power, not more, W |
200
|
| Temperature range, °C |
from -30 to +60
|
| Cavity electrical length |
1/4λ
|
Mechanical specifications
| Model |
PF4-1V
|
| Diameter, mm (ins.) |
105 (4")
|
| Weight, kg |
2.6
|
| Connector |
N-female
|
| Mount to 19-inch rack |
optional
|
| Length/Width/Depth, mm |
800x105x105
|
| |

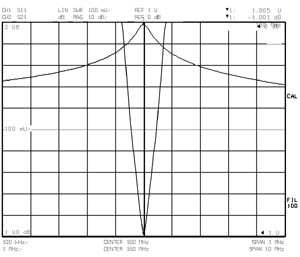

Typical selectivity characteristic PF4-1V
 | |
|
 |
