 | | Electrical specifications
| Model |
MDF2-6V
|
| Operating frequency band, MHz |
146-156
|
| Insertion loss (adjustable) not more, dB |
1.3
|
| Frequency separation TX/RX (min), MHz |
2.5-4.5
|
| Impedance, Ohm |
50
|
| Isolation, not less, dB |
80
|
| VSWR, not more than |
1.5
|
| Input power, not more, W |
not more than 100
|
| Temperature range, °C |
from -30 to +50
|
|
|
Mechanical specifications
| Model |
MDF2-6V
|
| Weight, kg |
8.7
|
| Connector |
N-female
|
| Dimensions (LxWxH), mm |
310x53x610
|
| |

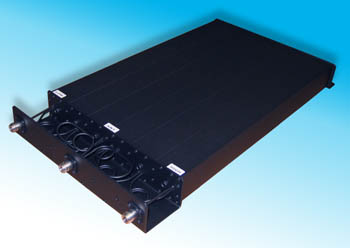

A new model MDF2-6V is a prototype of MDF-6V, but is performed on the basis of the usual linear (not spiral) cavities in the cases of the 50 mm cross-section. As a result an enhanced quality-factor helps to decrease the separation TX/RX to the value of 2-3 MHz and to increase the filtering capabilities of the duplexer.

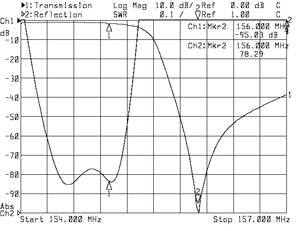

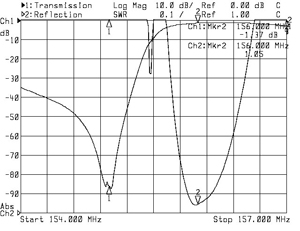

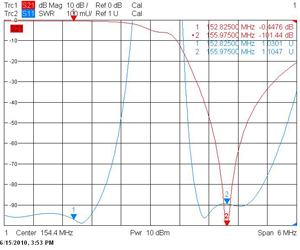

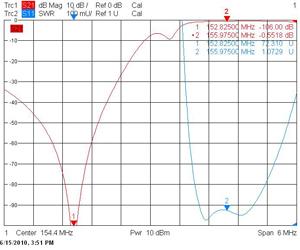

Typical duplexers response curves
| |
|
 |
