 | | Electrical specifications
| Model |
MDF1-6UH5/8
|
| Operating frequency band, MHz |
440-470
|
| Insertion loss (adjustable) not more, dB |
1.3
|
| Frequency separation TX/RX (min), MHz |
5-8
|
| Impedance, Ohm |
50
|
| Isolation, not less, dB |
85
|
| VSWR, not more than |
1.5
|
| Input power, not more, W |
50
|
| Temperature range, °C |
from -30 to +50
|
|
|
Mechanical specifications
| Model |
MDF1-6UH5/8
|
| Weight, kg |
1.1
|
| Connector |
N-female
|
| Dimensions (LxWxH), mm |
156x32x278
|
| |

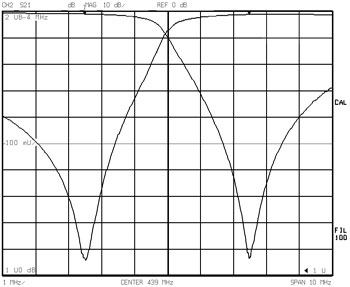

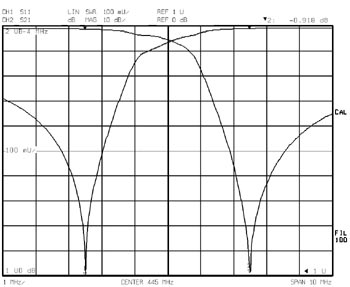

Typical duplexers response curves MDF1-6UH5/8
 | |
|
 |
