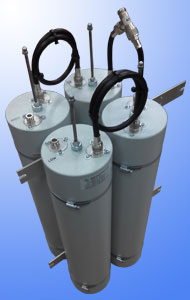

DPS5-4V
|

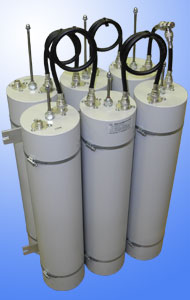

DPS5-6V
|
| | Electrical specifications
| Model |
DPS5-4V |
DPS5-6V
|
| Operating frequency band, MHz |
140-174
|
| Insertion loss (adjustable) not more, dB |
1 |
1,5
|
| Frequency separation TX/RX (min), MHz |
5
|
| Band pass, kHz |
300 |
370
|
| Impedance, Ohm |
50
|
| Isolation, not less, dB |
55 |
70
|
| VSWR, not more than |
1,5
|
| Input power, not more, W |
300
|
| Temperature range, °C |
from -30 to +60
|
| Cavity electrical length |
1/4λ
|
|
|
Mechanical specifications
| Model |
DPS5-4V |
DPS5-6V
|
| Diameter, mm (ins.) |
128 (5")
|
| Weight, kg |
8,45 |
12,35
|
| Connector |
N-female
|
| Mount to 19-inch rack |
yes
|
| Length/Width/Depth, mm |
800x480x265
|
| |
It is become essential frequently while constructing multichannel sites to combine transmitter band and receiver band into one antenna. "DPS" series bandpass duplexer can handle this task.
In DPS5-4V and DPS5-6V each arm represents two- or three-jar 5" coaxial resonator preselector. DPS5-6V duplexer provides wider transmitting and receiving bandwidth, than DPS5-4V.
Typical duplexers response curves
DPS5-4V
|
DPS5-6V
|
| |
|
 |
