 | | Electrical specifications
| Model |
DPS2-12V
|
| Operating Frequency band, MHz |
140-173
|
| Insertion loss not more, dB |
2.5
|
| Min.frequency separation, MHz |
5
|
| Impedance, Ohm |
50
|
| Isolation, not less, dB |
80
|
| VSWR, not more than |
1.3
|
| Input power, not more, W |
200
|
| Temperature Range, °C |
from -30 to + 50
|
|
|
Mechanical specifications
| Model |
DPS2-12V
|
| Weight, kg |
11.5
|
| Connector |
N-female
|
| Length/Width/Depth, mm |
484Ñ…330Ñ…125
|
| |

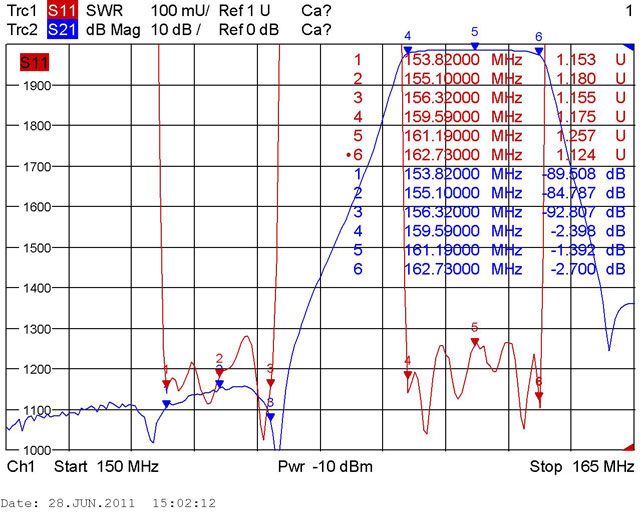

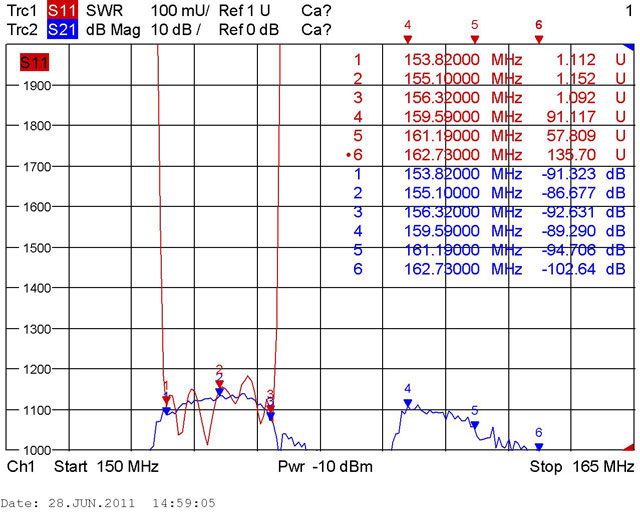

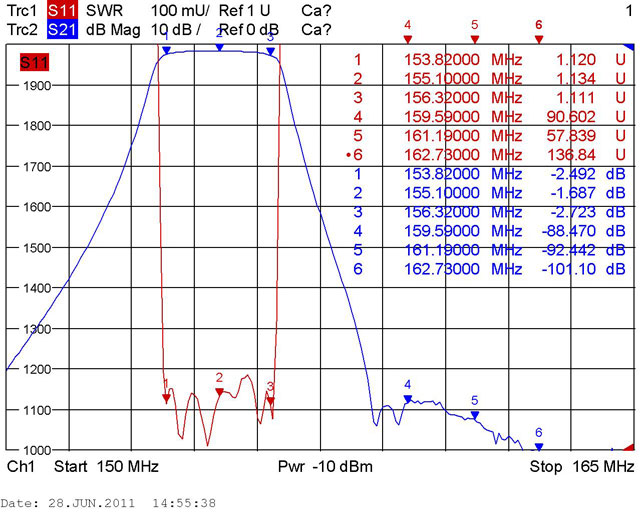

Typical DPS2-12V duplexer response curves
