 | | Electrical specifications
| Model |
DPS2-T
|
Pass band, MHz
Low band
High Band |
380 - 385
390 - 395
|
| Insertion loss (adjustable) not more, dB |
1,5
|
| Frequency separation TX/RX (min), MHz |
5
|
| Isolation, not less, db |
>65
|
| VSWR, not more than |
1,5
|
| Input power, not more, W |
200
|
| Temperature range, °C |
from -30 to +60
|
| Cavity electrical length |
1/4λ
|
|
|
Mechanical specifications
| Model |
DPS2-12T
|
| Weight, kg |
8,1
|
| Connector |
N-female
|
| Length/Width/Depth, mm |
484Ñ…176Ñ…420
|
| Application |
Indoor
|
| Mount to 19-inch rack |
yes
|
| |

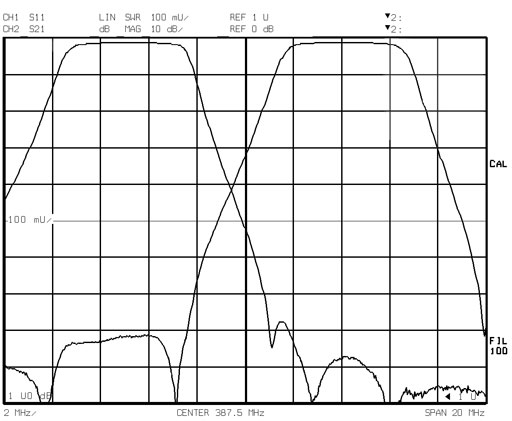

Typical DPS2-12T duplexer response curves
| |
|
 |
