 | | Electrical specifications
| Model |
DPS2-12ALT
|
| Operating Frequency band, MHz |
300-306/336-342
|
| Insertion loss not more, dB |
1.2
|
| Max. frequency bandwidth, RX, MHz |
300-306
|
| Max. frequency bandwidth, TX, MHz |
336-342
|
| Impedance, Ohm |
50
|
| Isolation, not less, dB |
75
|
| VSWR, not more than |
1.3
|
| Input power, not more, W |
150
|
| Temperature Range, °C |
from -20 to +50
|
|
|
Mechanical specifications
| Model |
DPS2-12ALT
|
| Weight, kg |
7.4
|
| Connector |
N-female
|
| Length/Width/Depth, mm |
484Ñ…334Ñ…178
|
| |

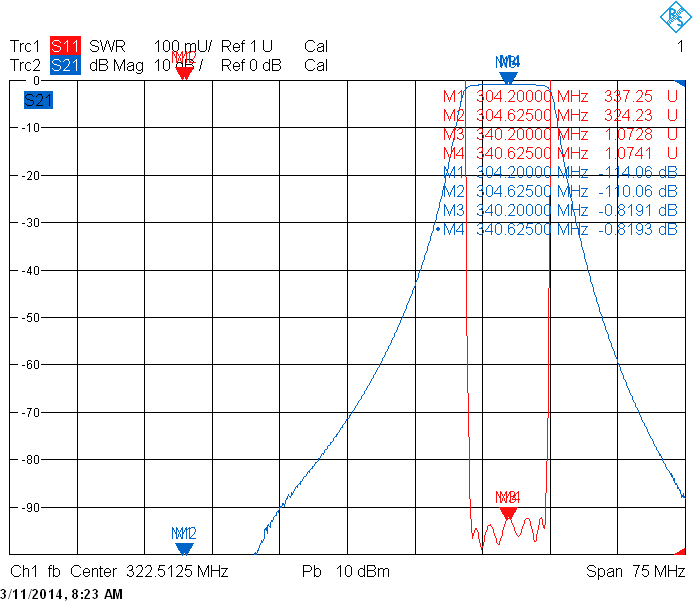

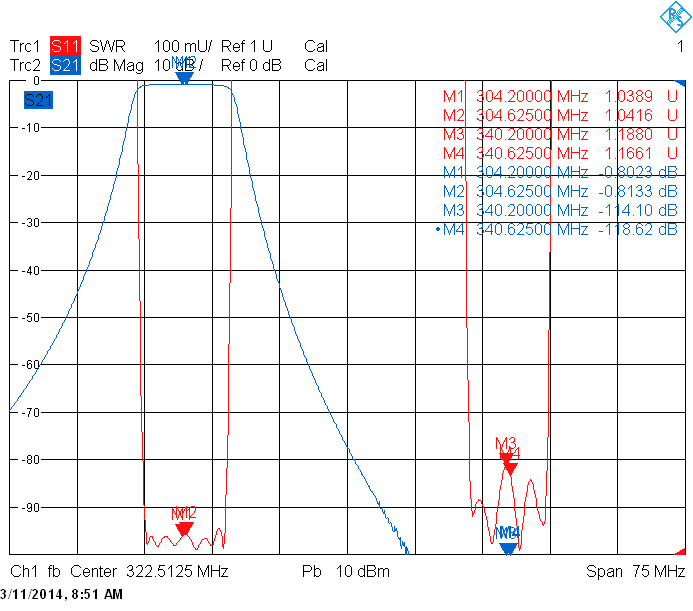

Typical DPS2-12ALT duplexer response curves
| |
|
 |
