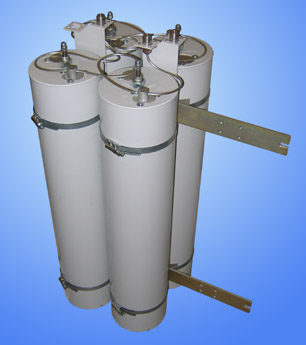

DPRE5-4V
|

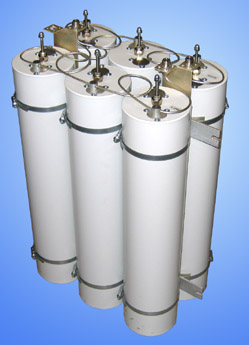

DPRE5-6V
|
| | Electrical specifications
| Model |
DPRE5-4VL |
DPRE5-4VH |
DPRE5-6VL |
DPRE5-6VH
|
| Operating Frequency band, MHz |
140-160 |
152-174 |
140-160 |
152-174
|
| Insertion loss (adjustable) not more, dB |
1.45 |
1.45 |
1.7 |
1.7
|
| Frequency separation TX/RX (min), MHz |
0,6 |
0.6 |
0.4 |
0.4
|
| Impedance, Ohm |
50 |
50 |
50 |
50
|
| Isolation, not less, dB |
78 |
78 |
97 |
97
|
| VSWR, not more than |
1.5 |
1,5 |
1.5 |
1.5
|
| Input power, not more than, W |
300 |
300 |
300 |
300
|
| Temperature Range, °C |
from -30 to +60 |
from -30 to +60 |
from -30 to +60 |
from -30 to +60
|
| Cavity electrical length |
1/4 λ |
1/4 λ |
1/4 λ |
1/4 λ
|
|
|
Mechanical specifications
| Model |
DPRE5-4VL |
DPRE5-4VH |
DPRE5-6VL |
DPRE5-6VH
|
| Diameter, mm (ins.) |
128 (5") |
128 (5") |
128 (5") |
128 (5")
|
| Weight, kg |
8.5 |
8.5 |
12.2 |
12.2
|
| Connector |
N-female |
N-female |
N-female |
N-female
|
| Mount to 19-inch rack |
present |
present |
present |
present
|
| Length/Width/Depth, mm |
800x480x265 |
800x480x265 |
800x480x265 |
800x480x265
|
| |
These new economic models distinguish from the traditional band reject duplexers as the coaxial tripling elements are changed by the whole-soldered nodes. The filter has a construction that ensures a high thermo-stability due to Invar alloy. A high quality-factor of each cavity is provided by means of application of the pure electro-technical copper and by the silvering of the contacting parts. An adjusting is being implemented on the modern network spectrum analyzers manufactured by Aglient Technologies and Rohde&Schwartz.
Typical duplexers response curves
DPRE5-4VH
|
DPRE5-6VL
|
| |
|
 |
