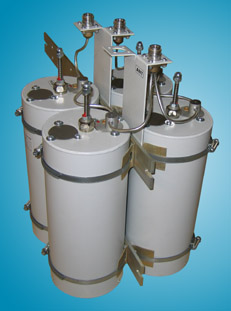

DPRE4-4U
|

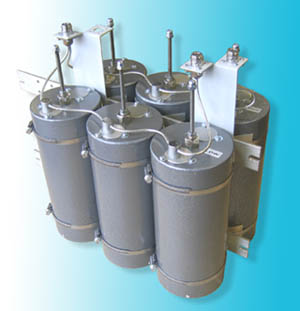

DPRE4-6U
 |
| | Electrical specifications
| Model |
DPRE4-4UL |
DPRE4-4UM |
DPRE4-4UH |
DPRE4-6UL |
DPRE4-6UM |
DPRE4-6UH
|
Operating
frequency band, MHz |
400-440 |
430-470 |
470-490 |
400-440 |
430-470 |
470-490
|
Insertion loss
(adjustable) not more, dB |
1.5 |
1.5 |
1.5 |
2 |
2 |
2
|
Frequency separation
TX/RX (min), MHz |
2 |
2 |
2 |
1.6 |
1.6 |
1.6
|
| Impedance, Ohm |
50 |
50 |
50 |
50 |
50 |
50
|
| Isolation, not less, dB |
75 |
75 |
75 |
90 |
90 |
90
|
| VSWR, not more than |
1.5 |
1.5 |
1.5 |
1.5 |
1.5 |
1.5
|
| Input power, not more, W |
300 |
300 |
300 |
300 |
300 |
300
|
| Temperature range, °C |
from -30 to +60
|
Cavity electrical
length |
1/4λ |
1/4λ |
1/4λ |
1/4λ |
1/4λ |
|
|
|
Mechanical specifications
| Model |
DPRE4-4UL |
DPRE4-4UM |
DPRE4-4UH |
DPRE4-6UL |
DPRE4-6UM |
DPRE4-6UH
|
| Diameter, mm (ins.) |
116 (4") |
116 (4") |
116 (4") |
116 (4") |
116 (4") |
116 (4")
|
| Weight, kg |
5.8 |
5.8 |
5.8 |
8.1 |
8.1 |
8.1
|
| Connector |
N-female
|
| Mount to 19-inch rack |
present
|
| Length/Width/Depth, mm |
800x480x265
|
| |
These new economic models distinguish from the traditional band reject duplexers as the coaxial tripling elements are changed by the whole-soldered nodes. The filter has a construction that ensures a high thermo-stability due to Invar alloy. A high quality-factor of each cavity is provided by means of application of the pure electro-technical copper and by the silvering of the contacting parts. An adjusting is being implemented on the modern network spectrum analyzers manufactured by Aglient Technologies and Rohde&Schwartz.
Typical duplexers response curves
DPRE4-4U
|
DPRE4-6U
|
| |
|
 |
