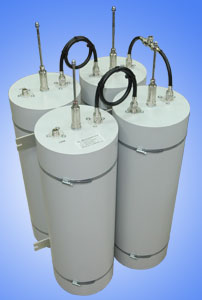

DPF8-4V
|

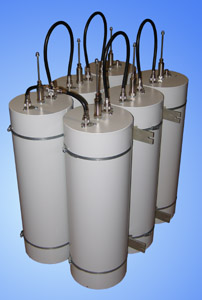

DPF8-6V
|
| | Electrical specifications
| Model |
DPF8-4V |
DPF8-6V
|
| Operating Frequency band, MHz |
140-174
|
| Insertion loss (adjustable) not more, dB |
1,5 |
2
|
| Frequency separation TX/RX (min), MHz |
3,5 |
1,5
|
| Impedance, Ohm |
50
|
| Isolation, not less, dB |
55 |
63
|
| VSWR, not more than |
1,5
|
| Input power, not more, W |
not more than 300
|
| Temperature Range with garanted stabilization, °C |
from -30 to +60
|
| Cavity electrical length |
1/4 λ
|
|
|
Mechanical specifications
| Model |
DPF8-4V |
DPF8-6V
|
| Diameter, mm (ins.) |
206 (8")
|
| Weight, kg |
14 |
21,3
|
| Connector |
N-female
|
| Mount to 19-inch rack |
yes |
yes
|
| Length/Width/Depth, mm |
800x480x420 |
800x650x420
|
| |
8-inch cavities with higher Q-factor are used when duplexer, assembled on 5-inch cavities, unable to provide appropriate isolation because of low frequency separation TX/RX.
Increase in the number of cavities (in duplexer DPF8-6V case) leads to gain slope increase and to decrease of receiver desensitization.
Typical duplexers response curves
DPF8-4V
|
DPF8-6V
|
| |
|
 |
