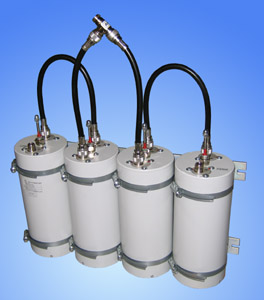

DPF4-4U
|

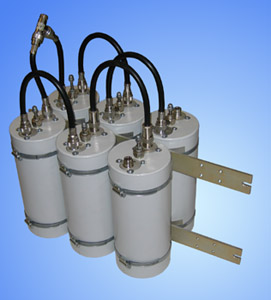

DPF4-6U
|
| | Electrical specifications
| Model |
DPF4-4U |
DPF4-6U
|
| Operating Frequency band, MHz |
400-490
|
| Insertion loss (adjustable) not more, dB |
1 |
1,5
|
| Frequency separation TX/RX (min), MHz |
5
|
| Impedance, Ohm |
50
|
| Isolation, not less, dB |
45 |
60
|
| VSWR, not more than |
1,5
|
| Input power, not more, W |
not more than 200
|
| Temperature range, °C |
from -30 to +60
|
| Cavity electrical length |
1/4λ
|
|
|
Mechanical specifications
| Model |
DPF4-4U |
DPF4-6U
|
| Diameter, mm (ins.) |
110 (4")
|
| Weight, kg |
5,8 |
8,4
|
| Connector |
N-female
|
| Mount to 19-inch rack |
yes
|
| Length/Width/Depth, mm |
360x480x225
|
| |
Duplexer DPF4-4U will be quite effective in case your frequency plan assumes 10 MHz separation between receiving and transmission frequency, the number of channels is rather small, and they occupy not more than 1 MHz band. Channel bandwidth will rise up to 1.5 MHz after installation of six cavities; gain slope will be improved also.
Typical duplexers response curves
DPF4-4U
|
DPF4-6U
|
| |
|
 |
