 | | Electrical specifications
| Model |
GP-1/4-42/47LB
|
| Operating frequency band, MHz |
42/47
|
| Frequency bandwidth, MHz |
1-1.2
|
| VSWR, not more than |
1.5
|
| Gain, dBi |
1.2
|
| Impedance, Ohm |
50
|
| Max. power input, W |
200
|
| Lightning protection |
DC grounded
|
| Adjustable |
need
|
|
|
Mechanical specifications
| Model |
GP-1/4-42/47LB
|
| Height/Length, M |
4.5
|
| Mast diameter, mm |
to 110 mm (mount kit CP-110)
|
| Construction material |
Aluminium alloy
|
| Rated wind velocity, m/s |
25
|
| Temperature range, °C |
from -50 to +50
|
| Connector |
N-female
|
| |

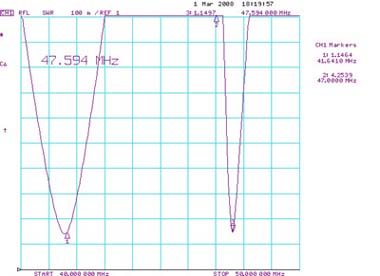

GP-1/4-42/47LB VSWR diagram
GP-1/4-42/47LB E-plane pattern
| |
|
 |
