 | Electrical specifications
| Model |
A5 VHF
|
| Operating Frequency band, MHz |
144-174
|
| Frequency bandwidth, MHz |
5
|
| VSWR, not more than |
1.5
|
| Gain,dBi |
4.5
|
| Impedance, Ohm |
50
|
| Max. Power input, W |
200
|
| Lightning protection |
DC grounded
|
| Adjustable |
need
|
Mechanical specifications
| Model |
A5 VHF
|
| Height/Length, M |
2.5
|
| Mast diametr, mm |
35-70 (CPK-70)
|
| Construction material |
brass
|
| Rated Wind Velocity, m/s |
40
|
| Temperature Range, °C |
from -50 to +50
|
| Connector |
N-female
|
| |
Gain diagram A5 VHF
|
VSWR diagram A5 VHF
|

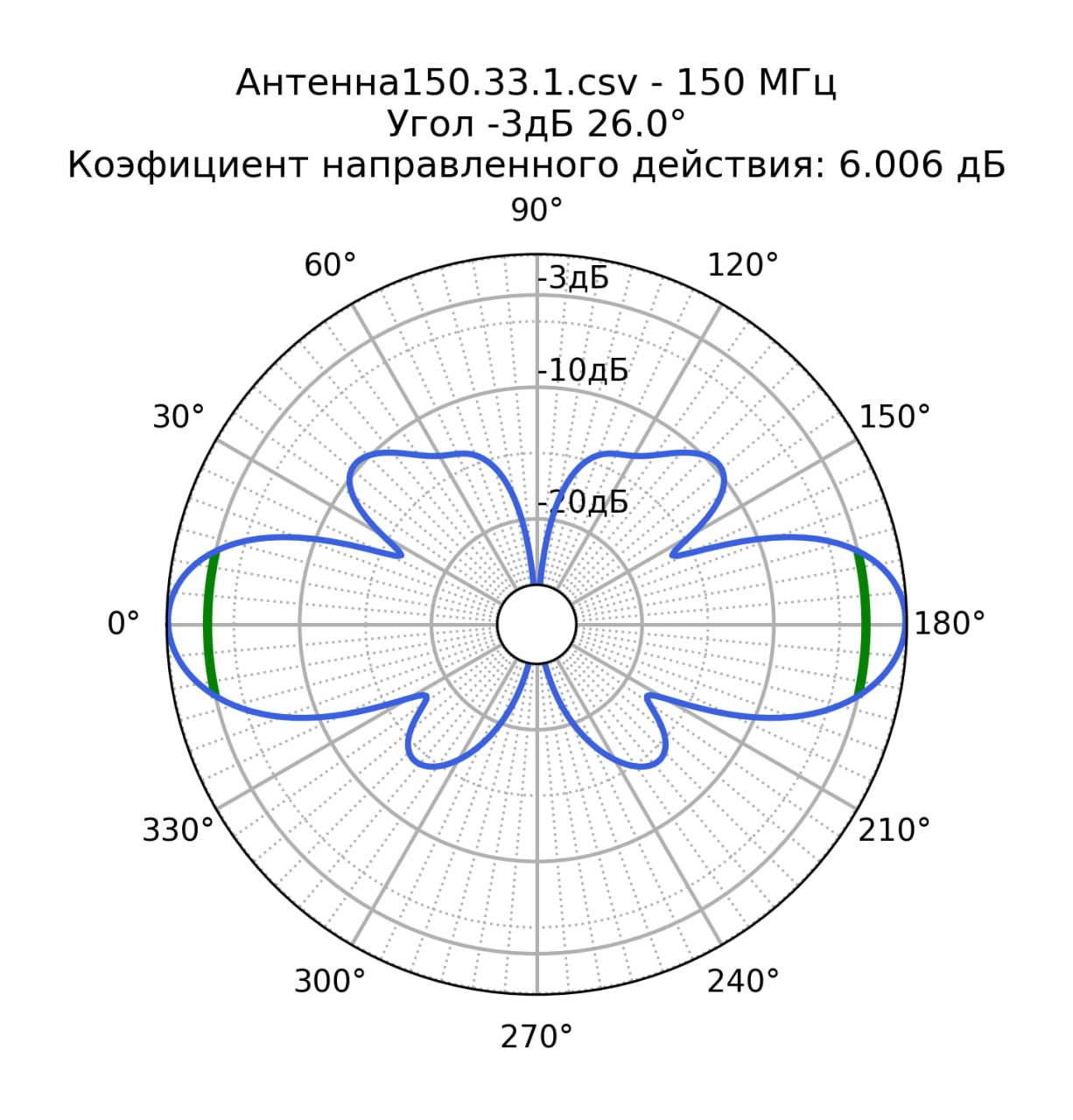

A5 VHF E-plane pattern
|
| |
|
 |
