400-480MHz
Vertical antennas A0-UHF
400-480MHz Vertical antennas A0-UHFElectrical specifications
Model A0-UHF
Operating Frequency band, MHz 400-480
Frequency bandwidth, MHz 80
VSWR, not more than 1.5
Gain,dBi 2,15
Max. Power input, W 500
Lightning protection Yes
Connector N-female
Mechanical specifications
Model A0-UHF
Height/Length/Width, mm 500Ñ…35Ñ…35
Weight, kg 0,3

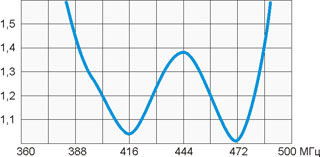

VSWR diagram A0-UHF

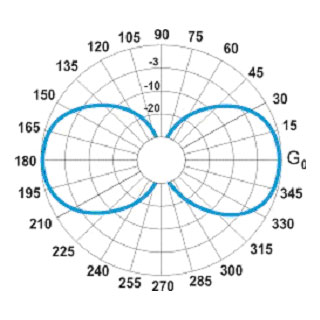

A0-UHF E-plane pattern
