 | Electrical specifications
| Model |
A0 AVIA
|
| Operating Frequency band, MHz |
118-136
|
| Frequency bandwidth, MHz |
18
|
| VSWR, not more than |
1.6
|
| Gain,dBi |
2.15
|
| Impedance, Ohm |
50
|
| Max. Power input, W |
100
|
| Lightning protection |
DC grounded
|
| Adjustable |
no need
|
| Sector in vertical plane , -3dB |
76°
|
| Polarization |
vertical
|
Mechanical specifications
| Model |
A0 AVIA
|
| Height/Length, M |
1.5
|
| Mast diametr, mm |
35-70
|
| Construction material |
copper
|
| Rated Wind Velocity, m/s |
40
|
| Temperature Range, °C |
from -50 to +50
|
| Connector |
N-female
|
| Weight, kg |
0.8
|
| Radome |
Grey fiberglass diam.30 mm
|
| |
The antenna is designated for operation within the radio station of the air traffic control tower for civil aviation. The aerial is characterized by the good matching level within the entire operation band and the shaped diagram pattern with the raised main lobe.
A0 AVIA, gain diagram
|

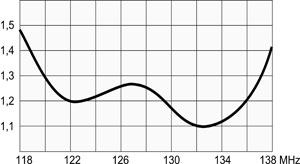

VSWR, A0 AVIA
|

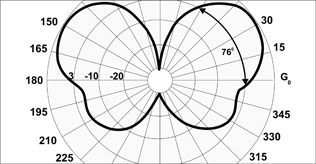

A0 AVIA E-plane pattern
|
| |
|
 |
