300-342MHz
Vertical antennas A0-ALT
300-342MHz Vertical antennas A0-ALTElectrical specifications
Model A0-ALT
Operating Frequency band, MHz 300-342
Frequency bandwidth, MHz 42
VSWR, not more than 1.5
Gain,dBi 2,15
Max. Power input, W 500
Lightning protection Yes
Connector N-female
Mechanical specifications
Model A0-ALT
Height/Length/Width, mm 300-342
Weight, kg 0,4

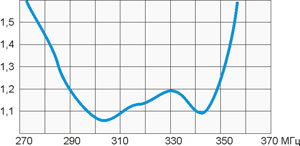

VSWR diagram A0-ALT

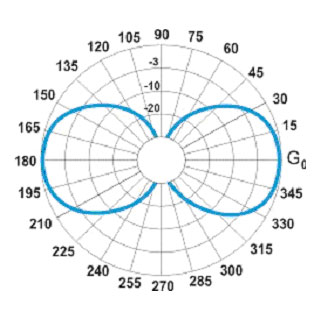

A0-ALT E-plane pattern
