| | Electrical specifications
| Model |
Q3-2m
|
| Operating frequency band, MHz |
144-146
|
| VSWR, not more than |
1.5
|
| Gain, dBi |
8
|
| Polarization |
V or H
|
| Sector in E-plane , -3dB |
60°
|
| Sector in H-plane , -3dB |
68°
|
| Impedance, Ohm |
50
|
| Max. power input, W |
100
|
| Lightning protection |
DC grounded
|
| Adjustable |
No need
|
|
|
Mechanical specifications
| Model |
Q3-2m
|
| Weight, kg |
2.5
|
| Length, mm |
790
|
| Construction material |
Aluminium alloy
|
| Mast diametr, mm |
40-69
|
| Rated wind velocity, m/s |
30
|
| Temperature range, °C |
from -50 to +50
|
| Connector |
N-female
|
| |

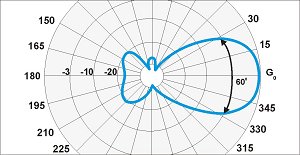

E-plane pattern Q3-2m

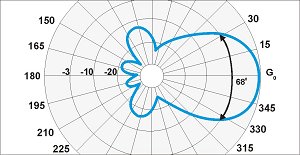

H-plane pattern Q3-2m
VSWR diagram Q3-2m
Gain diagram Q3-2m
 | |
|
 |
