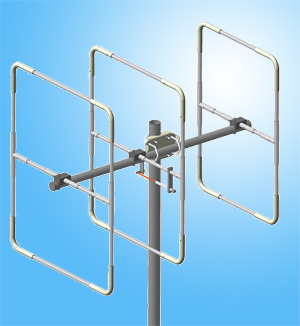

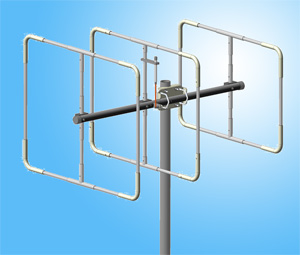

| | Electrical specifications
| Model |
2Ñ…Q3-2m
|
| Operating frequency band, MHz |
140-150
|
| Frequency bandwidth, MHz |
4
|
| VSWR, not more than |
1.5
|
| Gain, dBi |
8.3
|
| Polarization |
V or H
|
| Sector in E-plane , -3dB |
60°
|
| Sector in H-plane , -3dB |
64°
|
| Impedance, Ohm |
50
|
| Max. power input, W |
200
|
| Lightning protection |
no
|
| Adjustable |
need
|
|
|
Mechanical specifications
| Model |
2Ñ…Q3-2m
|
| Weight, kg |
5.15
|
| Length, mm |
1000
|
| Construction material |
Aluminium alloy
|
| Mast diametr, mm |
35-69 (КР-65)
|
| Rated wind velocity, m/s |
20
|
| Temperature range, °C |
from -50 to +50
|
| Connector |
SO-239
|
| |

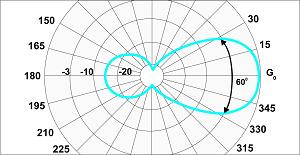

E-plane pattern 2xQ3-2M

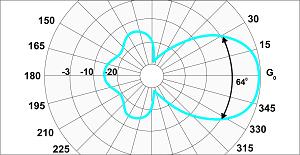

H-plane pattern 2xQ3-2M
VSWR diagram 2xQ3-2M
 | |
|
 |
