 | Electrical specifications
| Model |
SU-3T
|
| Operating frequency band, MHz |
380-400
|
| VSWR, not more than |
1.5
|
| Gain,dBi |
4
|
| Sector in vertical plane, -3dB |
1800
|
| Sector in horizontal plane,-3dB |
180°
|
| Impedance, Ohm |
50
|
| Max. power input, W |
200
|
Mechanical specifications
| Model |
SU-3T
|
| Weight not more than , kg |
1.15
|
| Radiating unit construction material |
brass
|
| Radome material |
PVC
|
| Radome color |
white
|

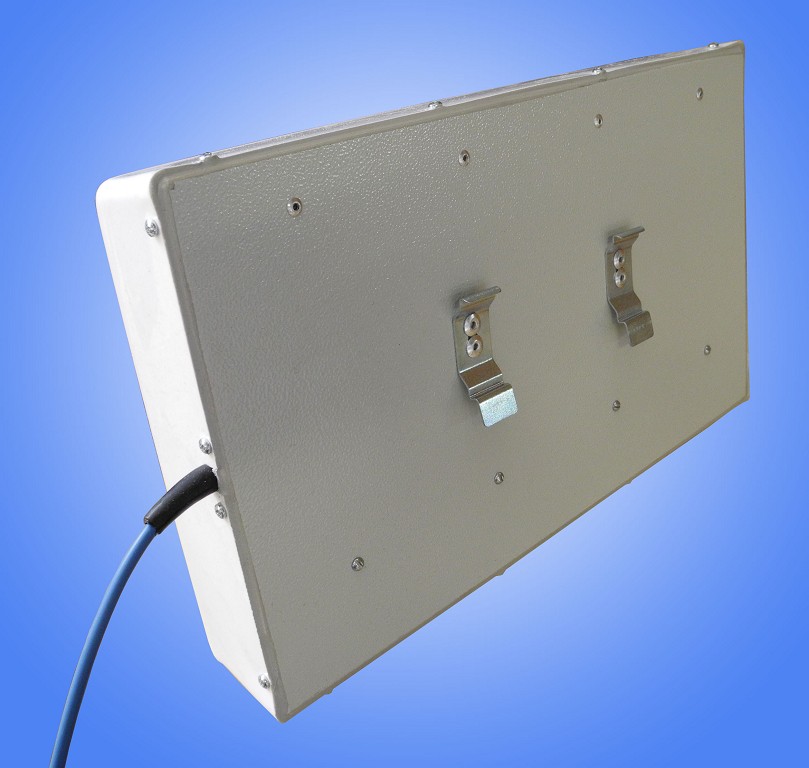

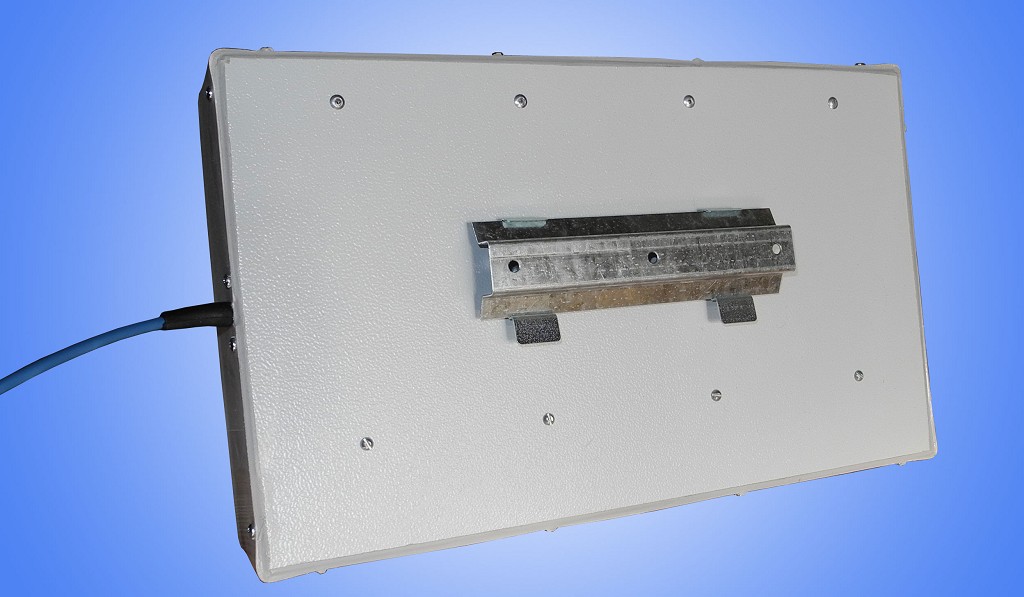

| Standard mounting |
on a wall
|
| Optional mounting |
on a mast
|
| Temperature range, °C |
from -50 to +50
|
| Connector |
N-female
|
| Size, sm |
350x210x65
|
| |

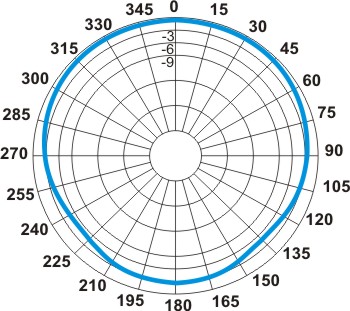

"SU-3" antenna's type H-plane pattern
| |
|
 |
