SU-3CDMA-G
| | Electrical specifications
| Model |
SU-3CDMA-G
|
| Operating frequency band, MHz |
430-470
|
| VSWR, not more than |
2
|
| Gain,dBi |
3
|
| Sector in E-plane, -3dB |
120°
|
| Sector in H-plane,-3dB |
180°
|
| Impedance, Ohm |
50
|
| Max. power input, W |
200
|
| Polarization |
vertical
|
|
|
Mechanical specifications
| Model |
SU-3CDMA-G
|
| Weight not more than , kg |
1.12
|
| Radiating unit construction material |
brass
|
| Radome material |
PVC
|
| Radome color |
white
|
| Standard mounting |
on a wall
|
| Temperature range, °C |
from -50 to +50
|
| Connector |
TNC-female
|
| Size, sm |
350x210x65
|
| |

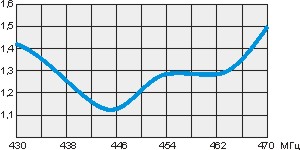

VSWR diagram SU-3CDMA-G

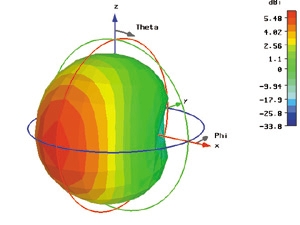

3D-diagram
|
SU-3CDMA H-plane pattern
|
| |
|
 |
