 | | Electrical specifications
| Model |
RAO-2U-60 |
RAO-2U-120 |
RAO-3U-120 |
RAO-4U-120
|
Operating frequency
band, MHz |
RAO-2UL-60 |
|
| |
380-440 |
400-470 |
400-470 |
400-470
|
| |
RAO-2UH-60 |
|
| |
435-500 |
|
| VSWR, not more than |
1.5
|
| Gain,dBi |
10 |
8 |
10.5 |
11
|
Sector in vertical plane ,
-3dB, ± 1° |
36° |
220 |
170
|
Sector in horizontal plane ,
-3dB, ± 5° |
60° |
120° |
120° |
120°
|
| Impedance, Ohm |
50
|
| Max. power input, W |
500 |
400 |
400 |
400
|
| Lightning protection |
all-metal structure
|
|
|
Mechanical specifications
| Model |
RAO-2U-60 |
RAO-2U-120 |
RAO-3U-120 |
RAO-4U-120
|
| Weight not more than , kg |
9.5 |
7 |
11.7 |
15.6
|
| Radiating unit construction material |
aluminum
|
| Radome material |
ABS
|
| Radome color |
grey
|
| Standard mounting |
to a 45-60 mm dia. tube
|
| Optional mounting |
wall mount or frame side mount
|
| Rated wind velocity, m/s |
40
|
| Wind loading area, m2 |
0.8 |
0.46 |
0.64 |
0.84
|
| Temperature range, °C |
from -50 to +50
|
| Connector |
7/16 DIN (N-female optional)
|
| Size, sm |
80x113x26 |
41x113x26 |
41x155x26 |
41x205x26
|
| |

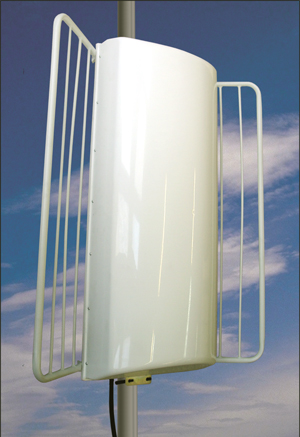

RAO 2U Series antennas are designed for using as transceiving antennas in trunking multichannel systems supporting Tetra and MPT1327 standards, as well as in NMT 450 and CDMA 450 cellular systems. The antennas can be used both as stand-alone sector antennas in telecommunication systems operating in cellular-segmented service zones and as the components of circular antenna arrays. The antennas of this type are of great demand due to enhanced gain factor.
The RAO 2U antenna represents a phased array comprising two broad passband components with parallel feeding. Specific form of the reflector element provides the necessary radiation sectors (60° and 120°).
The panel antennas of this class favorably differ from the classical folded dipole antenna arrays in that they have guaranteed standard width of the directional diagram, enhanced backfire suppression, as well as high degree of rainfall protection due to high-quality fiberglass radiotransparent radome. Its special ABS coating provides reliable protection from solar ultraviolet radiation.
H-plane pattern RAO-2U-60
|
H-plane pattern RAO-2U-120, RAO-3U-120, RAO-4U-120
|
RAO-2U E-plane pattern
|
RAO-3U-120 E-plane pattern
|
RAO-4U-120 E-plane pattern
|

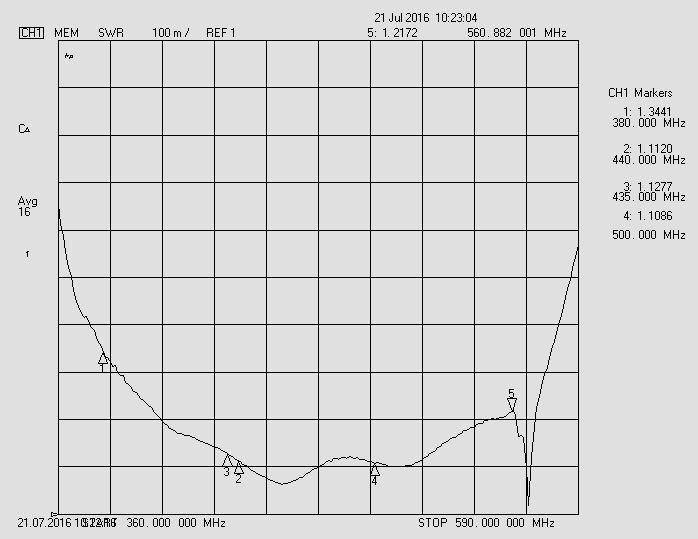

VSWR diagram, RAO-2UL-120, RAO-2UH-120
|
VSWR diagram,RAO-3U-120
|
VSWR diagram,RAO-4U-120
|
| |
|
 |
