 | | Electrical specifications
| Model |
Y9 VHFγ
|
| Operating frequency band, MHz |
150-170
|
| VSWR, not more than |
1.5
|
| Gain, dBi |
13.65
|
| Front-to-back ratio, dB |
20
|
| Sector, -3dB |
|
| E-plane |
34°
|
| H-plane |
39°
|
| Polarization |
vertical/horizontal
|
| Impedance, Ohm |
50
|
| Max. power input, W |
100
|
|
|
Mechanical specifications
| Model |
Y9 VHFγ
|
| Weight, kg |
5.1
|
| Size, mm |
4000x1000x100
|
| Construction material |
Aluminium alloy
|
| Mast diametr, mm |
25-55
|
| Rated wind velocity, m/s |
42
|
| Wind loading area, m2 |
0.2
|
| Load of side wind 42 m/s, H |
230
|
| Rated wind velocity with 0.5" icing, m/s |
28
|
| Temperature range, °C |
from -50 to +50
|
| Connector |
SO-239
|
| Size of box, mm |
2005x120x120
|
| |

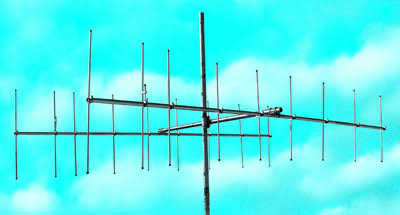

Due to its high gain (up to 11 dBd), nine-component Yagi antenna Y9 VHFg is implemented for communication between subscriber stations and repeater, between subscriber stations, and between remote telemetry systems transmitters, also.
Y9 VHFγ E-plane pattern
|
Y9 VHFγ H-plane pattern
|
VSWR diagram, Y9 VHFγ
| |
|
 |
