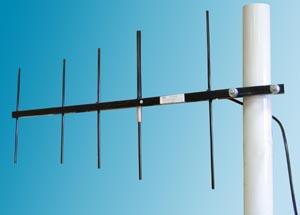

 | | Electrical specifications
| Model |
Y5-CDMA |
Y5-433 |
Y5-446
|
| Operating frequency band, MHz |
453-467 |
426-440 |
436-454
|
| VSWR, not more than |
1,5 |
1.5 |
1.5
|
| Gain, dBi |
8.15 |
8.15 |
8.15
|
| Front-to-back ratio, dB |
15 |
15 |
15
|
| Sector , -3dB |
|
| E-plane pattern |
55° |
55° |
55°
|
| H-plane |
86° |
86° |
86°
|
| Polarization |
vertical |
vertical |
vertical
|
| Impedance, Ohm |
50 |
50 |
50
|
| Max. power input, W |
50 |
50 |
50
|
|
|
Mechanical specifications
| Model |
Y5-CDMA |
Y5-433 |
Y5-446
|
| Weight, kg |
0.65
|
| Size, mm |
640Ñ…330Ñ…20
|
| Construction material |
Aluminium alloy
|
| Mast diametr, mm |
25-55
|
| Rated wind velocity, m/s |
45
|
| Load of side wind 45 m/s, H |
10
|
| Rated wind velocity with 0.5" icing, m/s |
28
|
| Temperature range, °C |
from -50 to +50
|
| Connector |
TNC-male
|
| |
low loss cable 2.5 m
|
| |
VSWR diagram,Y5-CDMA |
VSWR diagram, Y5-433 |
 |
 |
"Y5" antennas H-plane pattern
 |
"Y5" antennas E-plane pattern
 |
| |
|
 |
