 | Electrical specifications
| Model |
Y3 VHFγ
|
| Operating frequency band, MHz |
144-170
|
| VSWR, not more than |
1.5
|
| Gain, dBi |
7.65
|
| Front-to-back ratio, dB |
14
|
| Sector , -3dB |
|
| E-plane pattern |
50°
|
| H-plane |
112°
|
| Polarization |
vertical./horizont.
|
| Impedance, Ohm |
50
|
| Max. power input, W |
100
|
Mechanical specifications
| Model |
Y3 VHFγ
|
| Weight, kg |
1.35
|
| Size, mm |
1050x1050x83
|
| Construction material |
Aluminium alloy
|
| Mast diametr, mm |
25-55
|
| Rated wind velocity, m/s |
45
|
| Wind loading area, m2 |
0.07
|
| Load of side wind 45 m/s, H |
76
|
| Rated wind velocity with 0.5" icing, m/s |
28
|
| Temperature range, °C |
from -50 to +50
|
| Connector |
SO-239
|
| Size of box, mm |
1100x120x120
|
| |

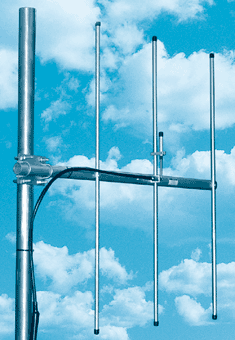

Antenna Y3 VHFγ is the most inexpensive and effective antenna for remote subscriber radio stations (up to 40-50 km) and telemetry systems, also. In the last case it is recommended to use it in horizontal polarization.
This is the most popular antenna for communication at a short distance among wireless communications enthusiasts.
Y3 VHFγ E-plane pattern
|
Y3 VHFγ H-plane pattern
|
VSWR diagram, Y3 VHFγ
| |
|
 |
