430-438 MHz
HAM-radio directional antenna Y33-70cm



Please visit our partner in EU
www.duplexers.eu

430-438 MHz HAM-radio directional antenna Y33-70cm
Electrical specifications
Model Y33-70cm
Operating Frequency band, MHz 430-438
Frequency bandwidth, MHz 8
VSWR, not more than 1.5
Gain,dBi 19.5
Impedance, Ohm 50
Max. Power input, W 500
Lightning protection DC grounded
E-plane sector -3dB 170
H-plane sector -3dB 170
Mechanical specifications
Model Y33-70cm
Mast diametr, mm KP-65
Construction material aluminum
Connector N-female

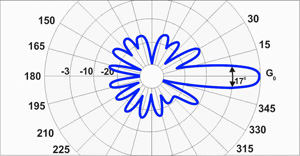

E-plane pattern

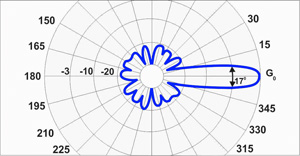

 H-plane pattern
