 | | Electrical specifications
| Model |

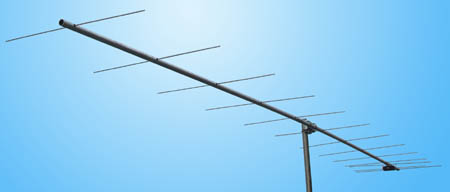

Y12-2m
|
| Operating Frequency band, MHz |
144-146
|
| Frequency bandwidth, MHz |
2
|
| VSWR, not more than |
1.5
|
| Gain,dBi |
14
|
| Impedance, Ohm |
50
|
| Max. Power input, W |
200
|
| Lightning protection |
DC grounded
|
| Adjustable |
need
|
| E-plane sector -3dB |
300
|
| H-plane sector -3dB |
340
|
|
|
Mechanical specifications
| Model |
Y12-2m
|
| Height/Length, M |
5,3
|
| Mast diametr, mm |
35-65 (KP-65)
|
| Construction material |
aluminum
|
| Rated Wind Velocity, m/s |
25
|
| Temperature Range, °C |
from -50 to +50
|
| Connector |
N-female
|
| |
Y12-2m E-plane pattern
|
Y12-2m H-plane pattern
|
| |
|
 |
