Y6-4m
 | | Electrical specifications
| Model |
Y6-4m
|
| Operating frequency band, MHz |
70-71
|
| VSWR, not more than |
1.5
|
| Gain, dBi |
11.6
|
| Sector in horizontal plane , -3dB |
62°
|
| Sector in vertical plane , -3dB |
41°
|
| Impedance, Ohm |
50
|
| Max. power input, W |
400
|
| Polarization |
V or H
|
| Lightning protection |
Yes
|
| Adjustable |
No
|
|
|
Mechanical specifications
| Model |
Y6-4m
|
| Weight, kg |
5
|
| Size LxW, mm |
4500x2120
|
| Construction material |
6063-T6
|
| Mast diametr, mm |
50-70
|
| Rated wind velocity, m/s |
40
|
| Temperature range, °C |
from -50 to +50
|
| Connector |
N-female
|
| |
This directed antenna of new generation for amateur communication. She is developed on the basis of requirements to professional antennas-high durability, stability to corrosion, reliable welding. Folded dipole reduces a level of noise and expands a strip.

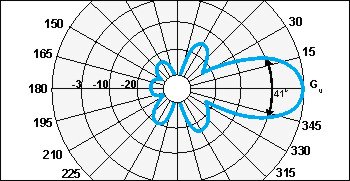

E-plane pattern Y6-4m

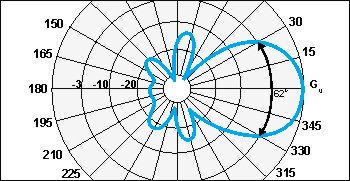

H-plane pattern Y6-4m

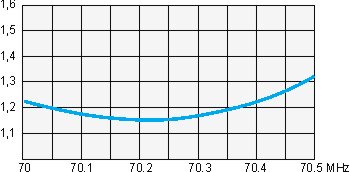

VSWR diagram Y6-4m
| |
|
 |
