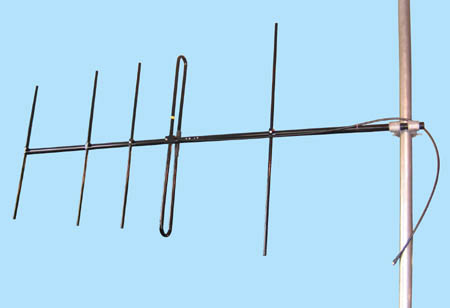

 | | Electrical specifications
| Model |
Y5 AVIA
|
| Operating frequency band, MHz |
118-136
|
| VSWR, not more than |
1.5
|
| Gain, dBi |
10.15
|
| Sector , -3dB |
|
| in vertical plane |
600
|
| in horizontal plane |
900
|
| Impedance, Ohm |
50
|
| Max. power input, W |
200
|
|
|
Mechanical specifications
| Model |
Y5 AVIA
|
| Weight, kg |
4.2
|
| Size, mm |
2450x1280x110
|
| Construction material |
Aluminium alloy
|
| Mast diametr, mm |
38-65
|
| Rated wind velocity, m/s |
45
|
| Wind loading area, m2 |
0.135
|
| Load of side wind 45 m/s, H |
150
|
| Rated wind velocity with 0.5" icing, m/s |
28
|
| Temperature range, °C |
from -50 to +50
|
| Connector |
N-female
|
| |
VSWR diagram,Y5 AVIA
Y5 AVIA E-plane pattern
|
Y5 AVIA H-plane pattern
|
| |
|
 |
