380-400 MHz Antennas power divider SV-2T : IK-Telecom
    Hosted by ORC

380-400 MHz

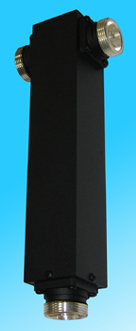

Antennas power divider SV-2T
380-400 MHz Antennas power divider SV-2TElectrical specifications
Model SV-2T
Operating frequency band, MHz 380-400
Insertion loss, dB 0.08
Impedance, Ohm 50
Inputs 2
VSWR, not more than 1.05
Input power, not more, W 300
Mechanical specifications
Model SV-2T
Weight, g 960
Connects to feeder with 7/16 DIN-female
Connects to antenna with 7/16 DIN-female
Length/Width/Depth, mm 230x40x82

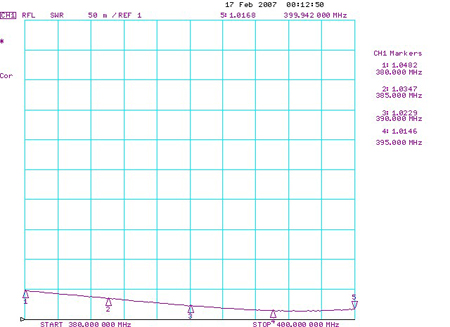

VSWR diagram SV-2T
