HAM-antennas power dividers SV-2-2m, SV-4-2m, TK-52-2m, TK-54-2m.

SV-2-2m	SV-4-2m
TK-52-2m	TK-54-2m

Electrical specifications

Model	Inputs	Operating frequency band MHz	VSWR	Power not more, kW	Insertion loss , dB
SV-2-2m	2	144-146	1.1	500	0.1
SV-4-2m	4	144-146	1.1	500	0.1
TK-52-2m	2	144-146	1.1	250	0.2
TK-54-2m	4	144-146	1.1	250	0.37

Mechanical specifications

Model	Connects to feeder with	Connects to antenna with	Dimensions, mm	Clamp for the mounting on a mast
SV-2-2m	N-female	N-female	527х65х25	additional order MK-25
SV-4-2m	N-female	N-female	527х65х65	additional order MK-25
TK-52-2m	N-female	N-male	680 (length)
TK-54-2m	N-female	N-male	3450 (length)

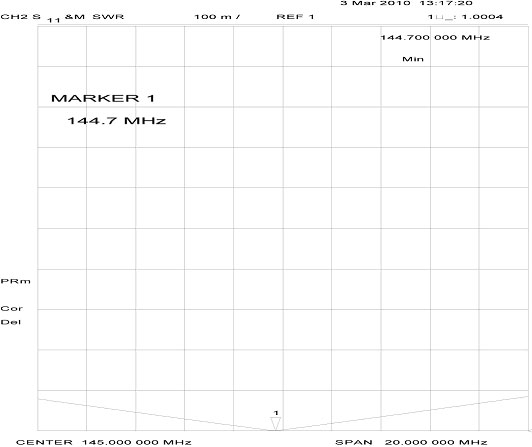

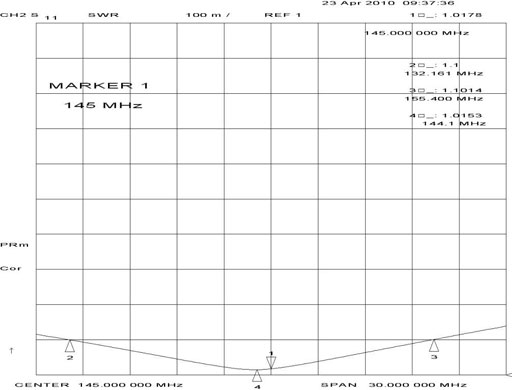

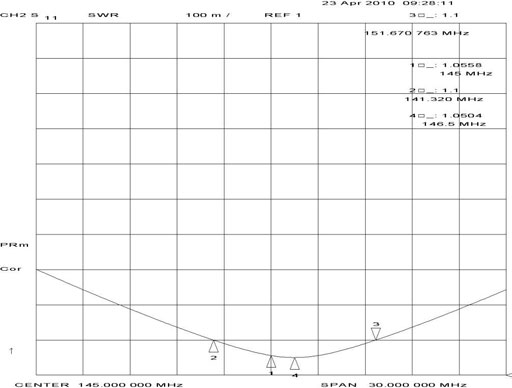

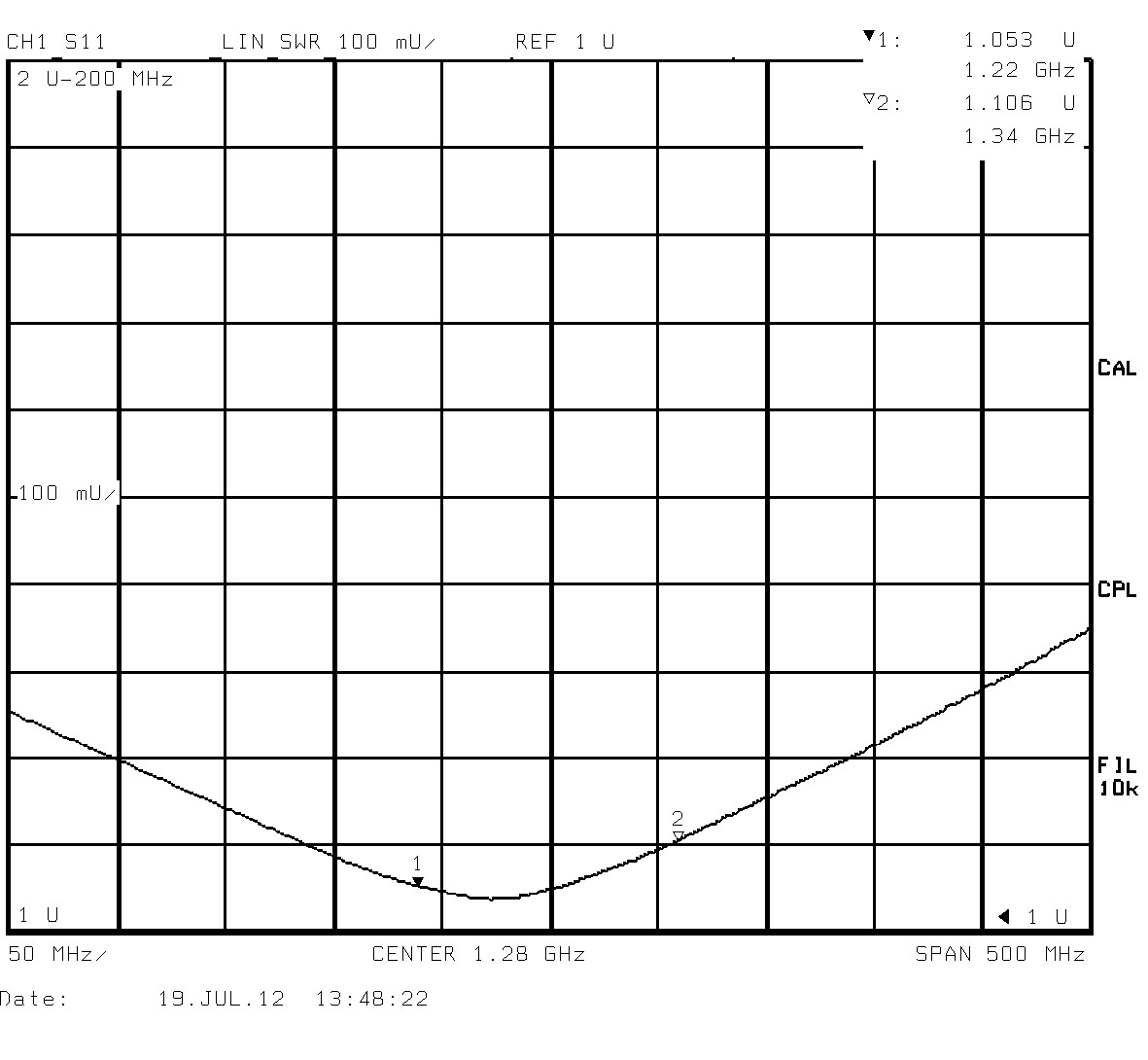

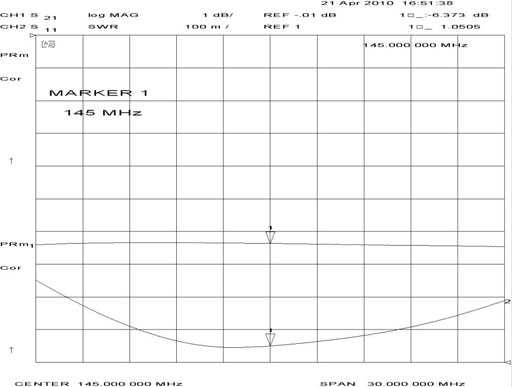

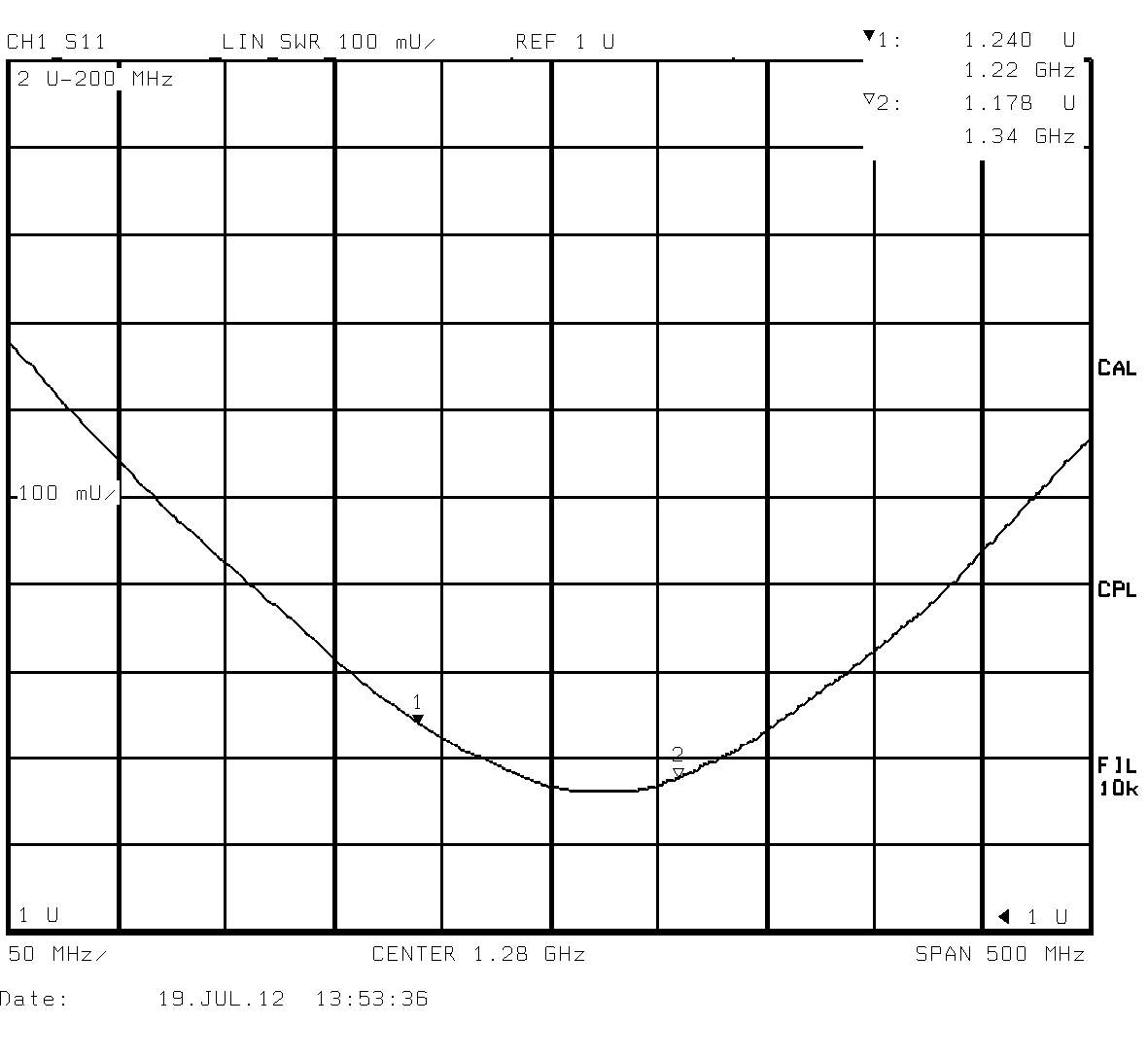

VSWR diagram

SV-2-2m

SV-4-2m

TK-52-2m

TK-54-2m
