Coaxial loads
NBC-5, NB-35, NB-60, NB-100R
Coaxial loads NBC-5, NB-35, NB-60, NB-100R
Electrical specifications
Model NBC-5 NB-35 NB-60 NB-100X
Operating frequency band, MHz 0-500 0-500 0-500 0-500
Impedance, Ohm 50 50 50 50
VSWR, not more than 1.12 1.12 1.12 1.12
Input power, not more, W 5 35 60 100
Temperature range, °C from -55 to +100
Mechanical specifications
Model NBC-5 NB-35 NB-60 NB-100X
Weight, kg 0.095 0.22 0.7 1.4
Connectors N-male N-male N-male N-female
Length/Width/Depth , mm 60x23x23 78x54x66 178x64x66 240x122x66

VSWR

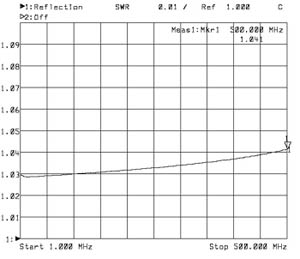

NBC-5

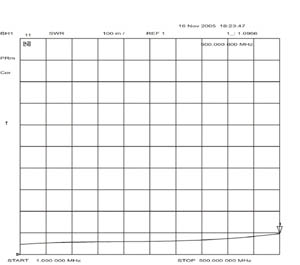

NB-35

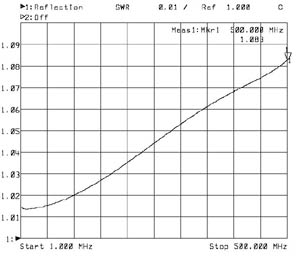

NB-60
