 | | Electrical specifications
| Model |
NB-50 |
NB-0.2 |
NB-100
|
| Operating frequency band, MHz |
0-500
|
| Impedance, Ohm |
50
|
| VSWR, not more than |
1,12 |
1,12 |
1,35
|
| Input power, not more, W |
50 |
0,2 |
100
|
| Temperature range, °C |
from -55 to +65
|
|
|
Mechanical specifications
| Model |
NB-50 |
NB-0,2 |
NB-100
|
| Weight, kg |
0.75 |
0.03 |
1.48
|
| Connectors |
N-female |
N-male |
N-female
|
| Length/Width/Depth , mm |
160x120x46 |
30x20x20 |
160x120x100
|
| |

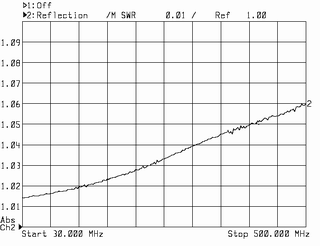

VSWR
NB-50
|
NB-0.2
|
| |
|
 |
